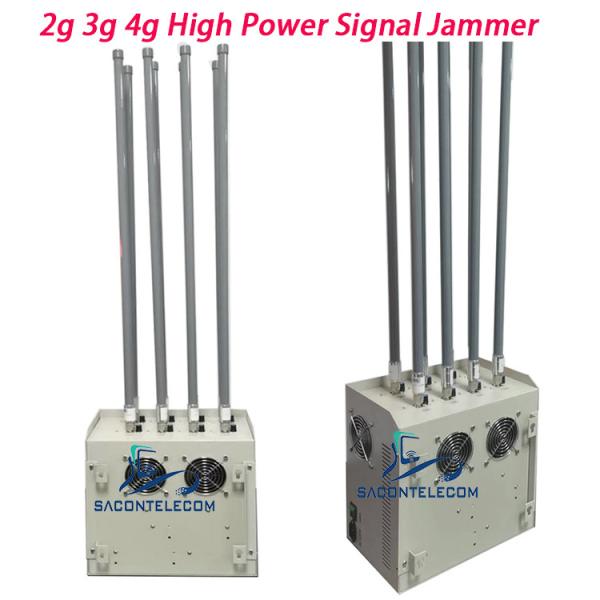

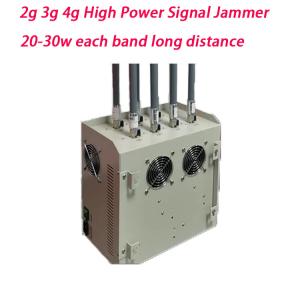

240w High Power Prison Cell Phone Jammer 100m Distance
Descriptions:
This high power prison signal jammer SA-008H is 240w power, each
band 30w. It can be done 4 bands, 5 bands, 6 bands, 7 bands
and 8 bands as your demand. This cellphone jammer has 2 colors,
sliver and black. This 8 channels prison jammer can block 2g 3g and
4g, GPS, WiFi and etc. The distance can be up to 100m. The jammer
device SA-008H includes good cooling system, it can work 24 hours
each day with non-stopped. Antennas are optional, omni and
directional antennas are ok. This mobile signal blocker is widely
used in prisons,
jails.
Advantages:
1. Aluminum-alloy casing with high protection has high resistance
to dust, water, and corroding.
2. Heat sink designing combing with the fans to make system in a
cooling status.
3. Special technology to prevent interference between each
frequency band.
4. Only interfere downlink frequency of mobile system, without
disturb normally working of Base Stations.
5. Frequency bands and output power selectable.
6. Each frequency band controlled by independent RF ON/OFF
switches.
7. Power of each frequency band can be adjustable independently.
8. Circuit protection to ensure system will not burn out in case of
antenna short circuiting or disconnection.
9. Antenna type options, directional or Omni-directional antennas
option.
10. Easy operation and installation.
Basic informations:
Output power: 240w
Jamming radius: 20 - 100meters depending on local signal strength
Antenna Type: Omni antennas or High Gain Directional Panel Antennas
Power supply: AC220v, DC28v
Power consumption: 800Watt
Size(length × wind × high): 40*38*32cm
Weight: 16kgs
frequency customize:
| Output Port | Frequency |
| CDMA 800 | 851-894 MHz |
| GSM 900 | 925-960 MHz |
| DCS1800/PCS1900 | 1805-1880 MHZ/ 1930-1990MHz |
| 3G CDMA | 2110-2170 MHz |
| GPS | 1570-1580 MHz |
| WiFi | 2400-2500 MHz |
| 4G LTE 800 | 791-821 MHz |
| 4G LTE 700 (Optional) | 725-770 MHz |
| 4G LTE 2600 | 2620-2690 MHz |
| 4G LTE 2300 (Optional) | 2300-2400 MHz |
| 5G 3500MHz | 3500-3700 MHz |
| 5G 3600MHz | 3600-3800 MHz |
| VHF | 135-174 MHz |
| UHF | 400-470 MHz |
| LOJACK | 170-175 MHz |
| RF | 466 MHz |
| RF(Optional) | 315 MHz |
| WiFi 2.4G | 2400-2485MHz |
| WiFi 5.8G | 5725-5850MHz |
| WiFi 5.2G | 5150-5350MHz |
| GPSL1/Glonass/BDS | 1560-1620MHz |
| GPSL2/BDS | 1227.42MHz |
| Wireless Camera 1.2G | 1100-1200MHz |
| Wireless Camera 2.4G | 2400-2483MHz |
Applications:
1. It can be applied at prisons, meeting rooms, conference rooms,
museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training
centers, factories, banks, trains, bus and more.
2. For some locations of special purpose such as hospitals, gas
stations and more, Please do field test first to make sure no
interference happened to the normal operation of their equipment
and instrument.
Packing Lists:
1 x Signal Jammer
6 x Antennas
1 x Power supply
